SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography
...

SVBONY TWM1 SV152 Reticle Eyepiece 1.25 Inch Crosshair Eyepiece 20mm Illuminated Centering Telescope Eyepiece SWA 70 Degree Adjustable Telescope Accessory for Perfectly Guided Star Astrophotography

sku : AEP-10122194
This SV152 Reticle Eyepiece 20mm premium 1.25" wide angle eyepiece includes an illuminated Single crosshair reticle that greatly simplifies centering celestial objects in the eyepiece for more accurate go-to alignment and tracking; An invaluable aid to centering guide stars and astrophotography target objects

It is the field of view that matters

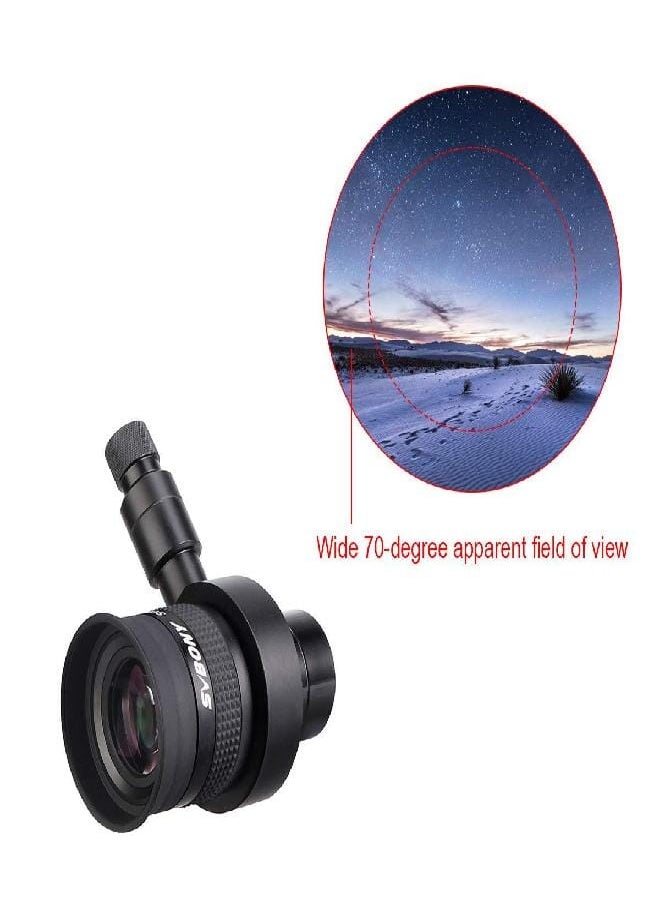

Wide 70-degree apparent field of the sky allowing you to find objects and alignment stars more easily than shorter focal length eyepieces ;Comfortable 16mm eye relief; lets you easily find and locate target objects

The perfect eyepiece not just for astrophotos
There are also other uses for the SV152 crosshair eyepiece; The lighting part of the product is removable;with it you can use it as an illumination eyepiece.;remove it and you can use it as ordinary eyepiece

Humanized design

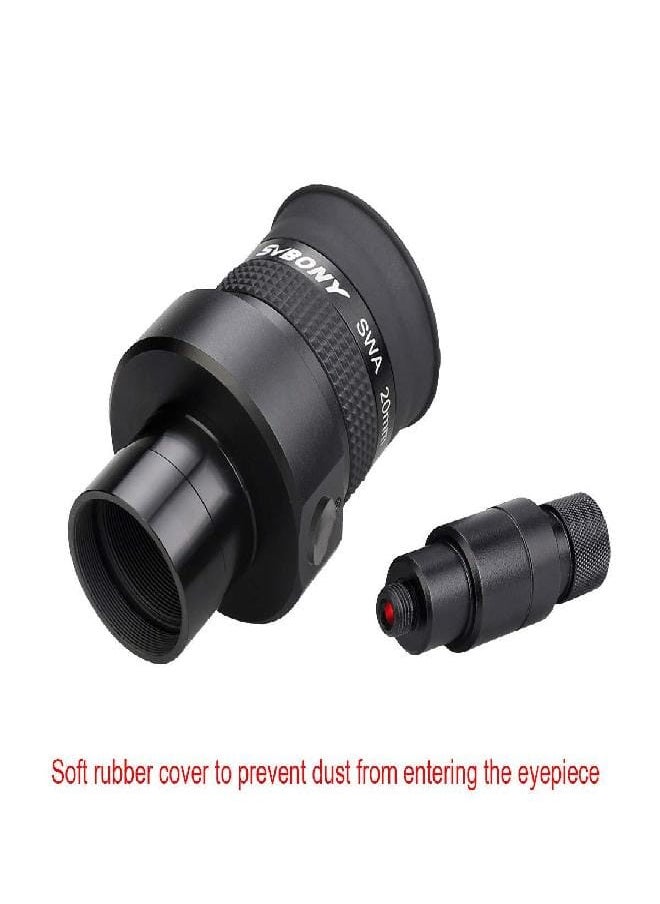

Included Rubber caps; keep your eyepieces clean in all directions
Smooth and stable focusing ring with non-slip rubber ring
Internal matting thread to reduce stray light entering the eyepiece

Specifications:
16.Eyepiece port: 1.25"
17.Focal length: 20mm
18.Lens Coated: FMC
19.Reticle: Single Crosshair
20.Lens group: 4 Group / 5PCS
21.eye relief: 16mm
22.Field of view: 70-Degrees
23.Field Stop: 25mm
24.Thread: M28.5*0.6
25.Material: Metal
26.Eyecup type: Rubber
27.Illuminator type: LED, Brightness Adjustable

29.Net Weight: 221g/7.8oz
30.Dimension: 75*53*102mmmm

Package Includes:
1X 1.25" SWA 70-Degree F20mm Eyepiece
1X LED Illuminator
1X Two Rubber Eyepiece Caps

1X Mirror Cloth
  • The SV152 crosshair eyepiece is ideal for guiding astrophotos when used in off-axis guiders or guide scopes; The illuminated crosshairs eyepiece is precisely located in the center of the eyepiece field of view; providing accurate results that allow you to easily track the guide
  • The SV152 crosshair eyepiece have a wide 70-degree apparent field of view makes acquiring and centering target objects a breeze; comfortable 16mm eye relief So you do not have to worry about the goal disappearing quickly
  • This SV152 illuminated single crosshair eyepiece has a brightness adjustable function; which has relatively low energy consumption at lower brightness; which can extend the life of the illuminator; with a crosshair for illumination
  • The standard 1.25-inch filter thread is compatible with all 1.25-inch standard equipment; the threaded extinction inside the eyepiece can well suppress the reflection of internal stray light; giving you a bright high-contrast view
  • Perfectly guided astrophotos; The crosshairs for easier use and alignment; excellent for accurate polar and go-to alignment; Fully multi coated broadband green optics with superior optical performance; clarity is great
Color :
Size :
12,699
Added To Cart
Add To Cart

delivery fast Delivery from 01 to 10 July
Category : Telescopes
warranty Guarantee of authenticity and physical health of goods
delivery free Free shipping
delivery fast Delivery from 01 to 10 July

Specifications

Colour NameMulti
Product Length4.5 in
Product Height2.54 in
Product Width2.75 in
What's In The BoxEyepieces
Model NumberTWM1
Model NameTWM
Item Quantity1
Colour NameMulti
Product Length4.5 in
Product Height2.54 in
Product Width2.75 in
What's In The BoxEyepieces
Model NumberTWM1
Model NameTWM
Item Quantity1
