Are you looking for a telescope camera? Do you want to find a auto guider? If you want to explore the sky on your computer? SV305 Pro is coming! New camera technology has made it possible to capture images and live video through a telescope for display on a computer screen making it easier to see celestial objects and much easier to share with kids, elderly parents and neighbors, and even total strangers.

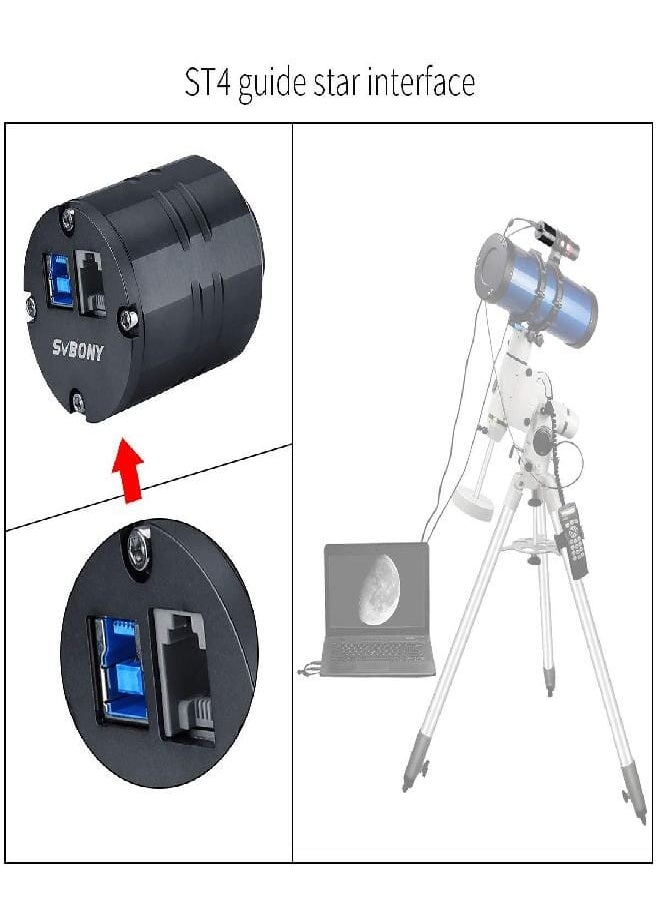

ST4 Guiding It is designed with ST4 guiding port. Supporting the PHD2 software, and works with ASCOM plate form. You can use the computer to control telescope mounts have an autoguiding port that connects directly to the autoguider (usually referred to as an ST-4 port, which works with analog signals).
Special Heat Dissipation Structure The unique heat dissipation design makes the product run more stable. Long-term exposure time during use reduces the noise to a certain extent and makes the image quality better.
Specification: Sensor: 1/2.8" CMOS Color
Pixel Size:2.9µmx2.9µm
Resolution:2M Pixels 1920*1080
USB Type:USB3.0
Shutter:Electronic Rolling Shutter
Exposure Time:1ms~30min
Gain:Automatic/Manual
Maximum Frame Rate:1920*1080@120FPS 320*240@260FPS
ADC:10 bit/12 bit Out 8 bit/12 bit
Filter:IR CUT filter
Interface Type:USB 3.0
Support OS:Windows7, Windows8.1, windows10, and Main Stream Linux OS; Raspberry Pi

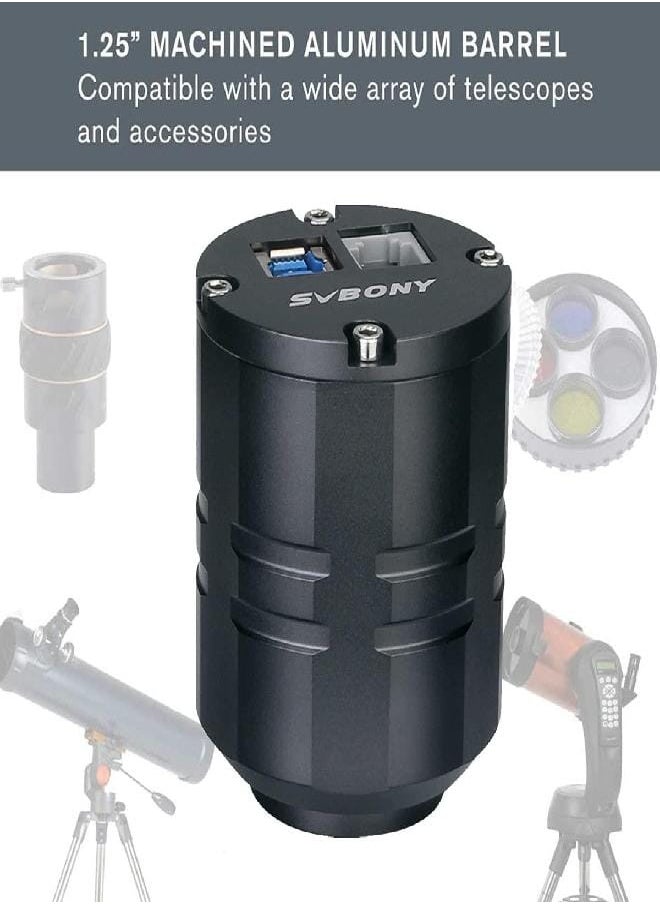

Support Telescope:Telescope with 1.25'' diagonal base hole
Power Consumption:230mA@5V
Cable Length:2m
Working Humidity:30%-80%
Storage Humidity:20%-90%
Operating Temperature:-10°C~50°C
Storage Temperature:-20°C~60°C
Weight:135g
Package Includes: 1 x SV305Pro Camera
1 x 2M USB 3.0 Cable
1 x 6 Pin Guiding Cable
1 x 1.25” Extension Tube
1 x CS- to C-lens Adapter
1 x 1.25” Dust Cover
1 x Cleaning Cloth
1 x User Manual
- ST4 Guiding;SV305 Pro camera is designed with ST4 guiding port; supporting the PHD2 software; and works with ASCOM plate form
- 1ms to 30min long exposure; long exposure can reach 30 minutes;you can use it for planetary imaging; lunar imaging and some bright deep space objects imaging
- Back-illuminated CMOS Sensor;the SV305 Pro uses an extremely sensitive IMX290 CMOS sensor; this sensor has very high QE and very low 0.7e- read noise; which improved sensitivity in the visible-light and near infrared light regions for industrial applications
- 128MB DDR Buffer;this buffer also allows a slower computer with USB 3.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals; this buffer also makes it possible to run multiple cameras using one computer without USB transfer problems
- Any Area ROI Support; a smaller region of interest ROI is read out from the sensor; leaving the image scale of the object being imaged; unchanged; allow arbitrary resolutions to be set
