Excellent Heat Dissipation

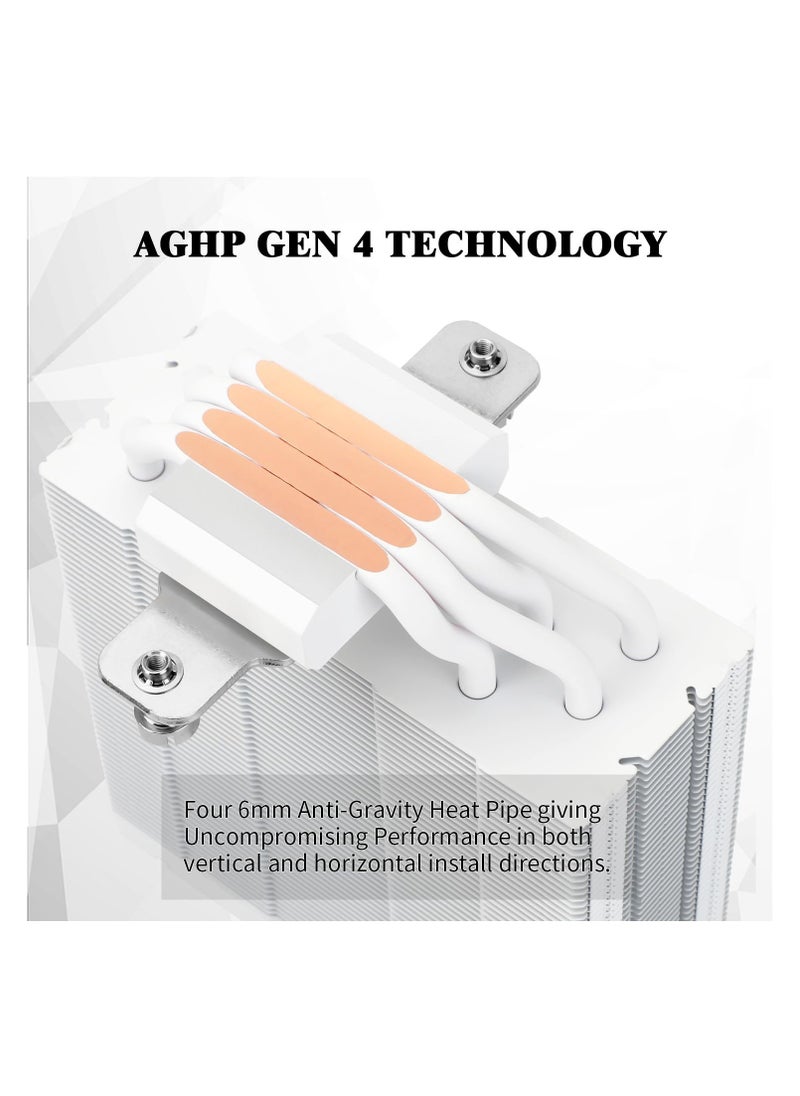

This CPU cooler features a robust design consisting of a nano fully painted white main tower and a 12cm ARGB CPU fan. The cooler efficiently manages heat dissipation through its dark mech style top cover, 4x6mm nano fully painted white heatpipes, and 1500RPM fan speed. This combination ensures that the CPU's temperature is effectively reduced, providing excellent cooling performance. The overall design ensures that the cooler delivers top-notch heat dissipation efficacy.
Cooler Specifications
Model: AS120 Vision ARGB White

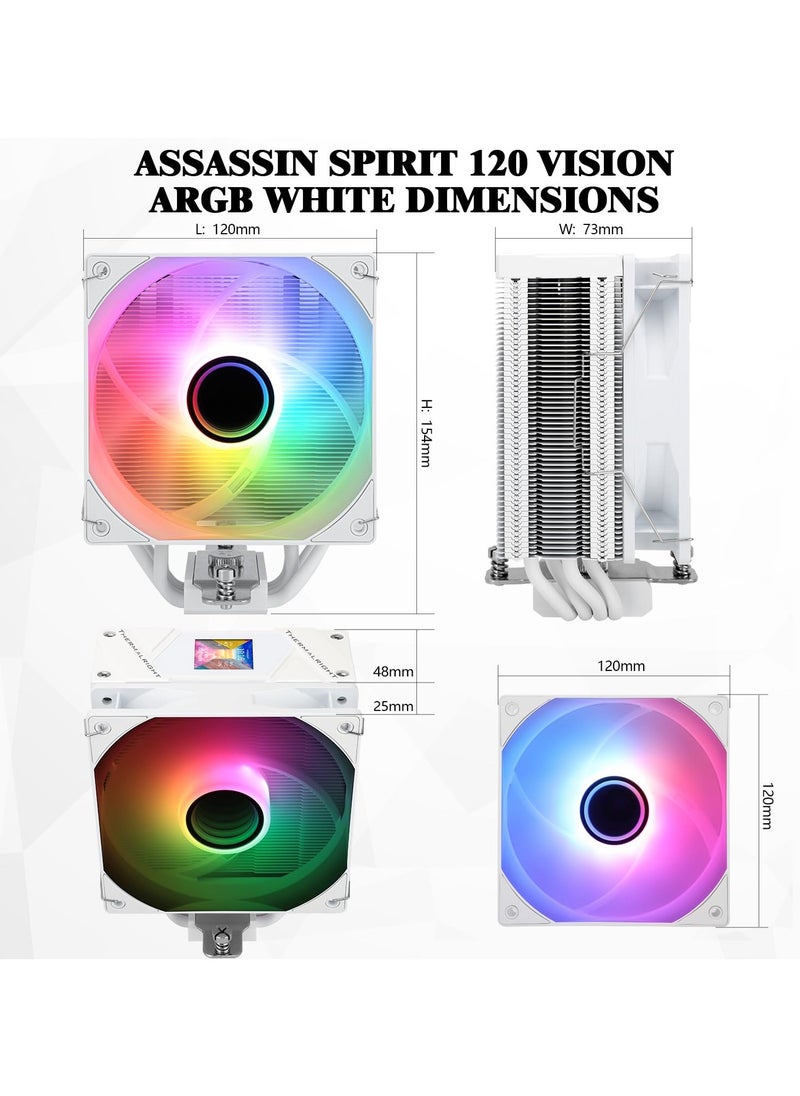

Overall Size: 120x73x154mm
Fan Size: 120x120x25.6mm

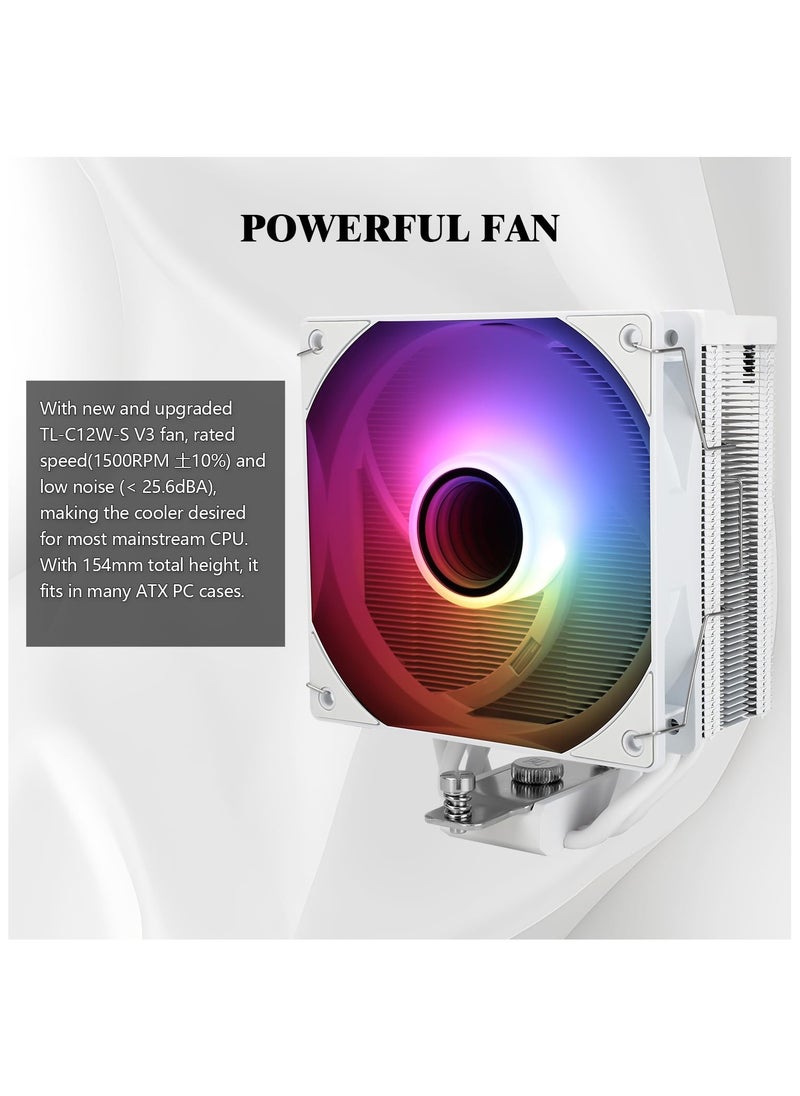

Fan Speed: 1500RPM ±10%
Operating Noise: ≤25.6dB(A)
Fan Power Connector: 4PIN PWM
Lighting Connector: 5V 3pin ARGB
The cooler also features S-FDB bearings for the fan, which are designed to ensure long-lasting performance and continuous, efficient heat dissipation. These high-quality bearings contribute to the cooler's extended lifespan.
1.54mm Height

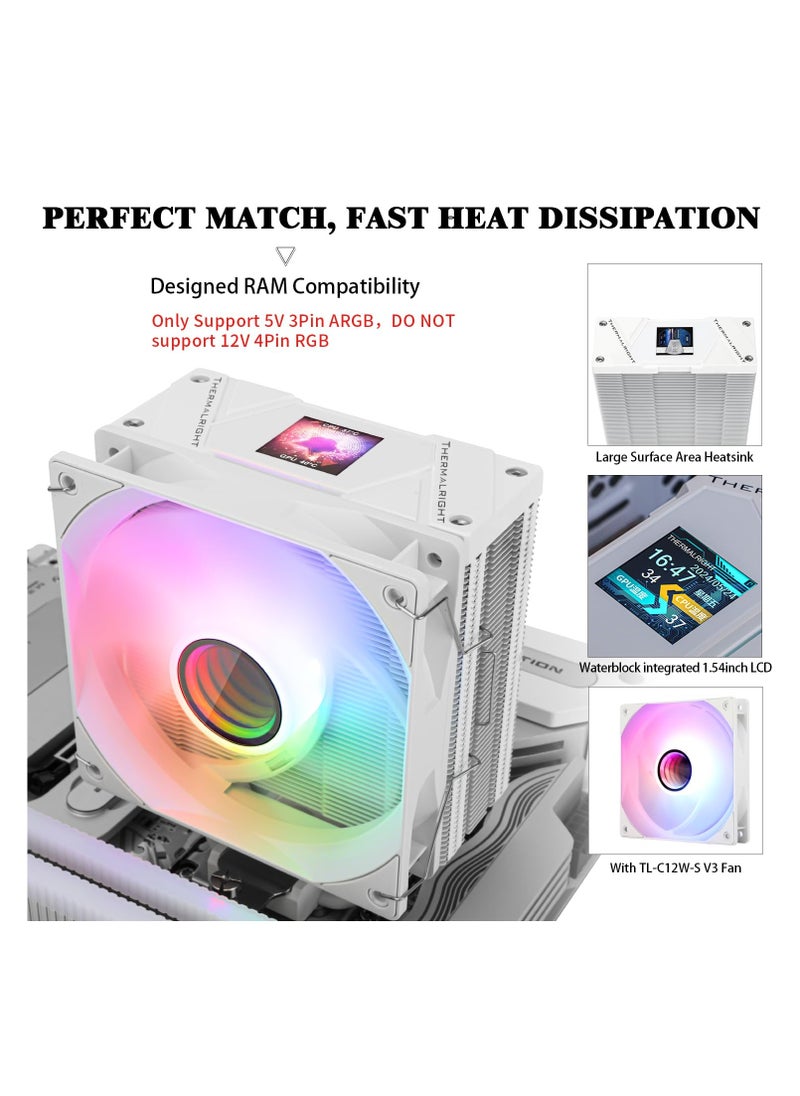

The cooler stands at 154mm in height, making it compatible with a wide variety of cases. The cooler’s ARGB Phantom Infinity Mirror and the stylish design of the top cover enhance both its functionality and aesthetic appeal. The offset tower design ensures that the cooler does not obstruct memory modules, allowing for easy installation in systems with higher memory sticks.
TRCC Software
The TRCC control center allows for full customization of the cooler’s performance and visual display. With features such as system parameter monitoring, background format customization, and text definition, the software enhances the DIY experience, providing a unique visual presentation. The screen uses a USB 9PIN interface for data transmission, along with a SATA power supply mode. The software can be downloaded from the official website, and customer service is available for any questions or issues regarding installation and setup.
Wide Compatibility
This CPU cooler is compatible with both AMD and Intel platforms, supporting the following sockets:
AMD: AM4/AM5
Intel: LGA1851/1700/1150/1151/1152/1155/1200

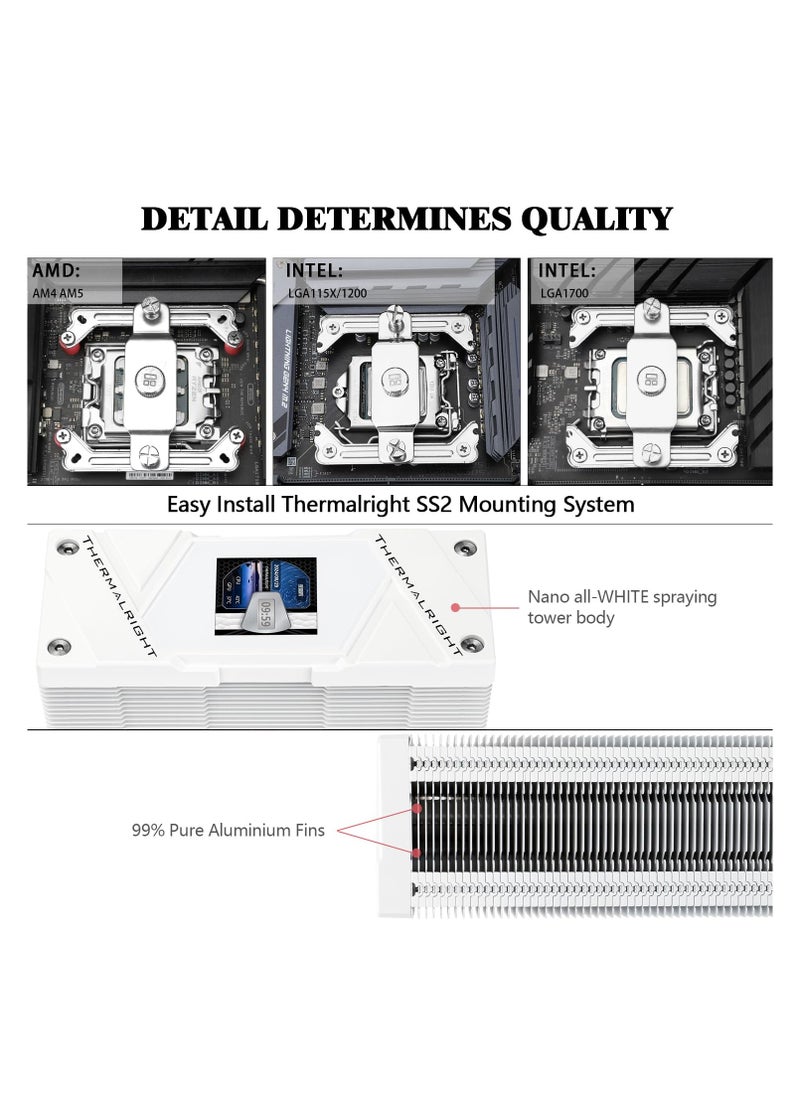

The cooler comes with dual-platform mounting grommets, ensuring proper installation for each platform. Installation instructions or tutorials are included for ease of setup. Please note that for AMD platforms, the motherboard’s original backplane is required (this product does not come with the backplane).
This cooler combines high cooling efficiency, aesthetic appeal, and ease of installation, making it an ideal choice for users seeking both performance and design in their cooling solutions.
- [Excellent Heat Dissipation] The CPU cooler as a whole consists of a nano fully painted white main tower and a 12cm ARGB cpu fan, where the main tower's dark mech style top cover, 4X6mm nano fully painted white heatpipes, and 1500RPM fan speeds on board can all easily dissipate the CPU's temperature, giving the cooler excellent heat dissipation efficacy.
- [1.54MM Height] The overall height of the computer cooler is 154mm, making it compatible with more cases.The cooler's ARGB Phantom Infinity Mirror and the design sense of the top cover both improve the overall value of the cooler, combining the cooler's high cooling function with aesthetics. The tower's offset design does not block the height of the memory sticks.
- [TRCC software] TRCC control centre can freely monitor the system parameters display and free background format display and free definition of text presentation, etc., more DIY play wonderful presentation. The screen adopts USB 9PIN interface data transmission + SATA power supply mode, the software needs to be downloaded and installed from the official website. If you have any questions, please consult customer service.
- [Wide compatibility] The cpu air cooler supports AMD/Intel dual-platform: AM4/AM5 and LGA1851/1700/1150/1151/1152/1155/1200, comes with dual-platform mounting grommets, which can be well installed to the corresponding platforms, and can be installed according to the instructions or installation tutorials. (Note: AMD platform installation requires the use of the motherboard's original backplane, this product does not come with the backplane)
