The Thermalright PA120 Black CPU Cooler is designed for enhanced cooling efficiency, utilizing a full electroplating reflow welding process for its construction. The cooler’s twin towers are coated with black nanoscale paint, contributing to a significant heat dissipation area of 9600 cm². The innovative offset asymmetric layout allows installation on the first graphics card slot, ensuring optimal heat dissipation performance while in use. This cooler offers exceptional cooling, making it ideal for high-performance CPUs, ensuring maximum thermal efficiency even under heavy loads.
Product Specifications
Model: Thermalright PA120 Black

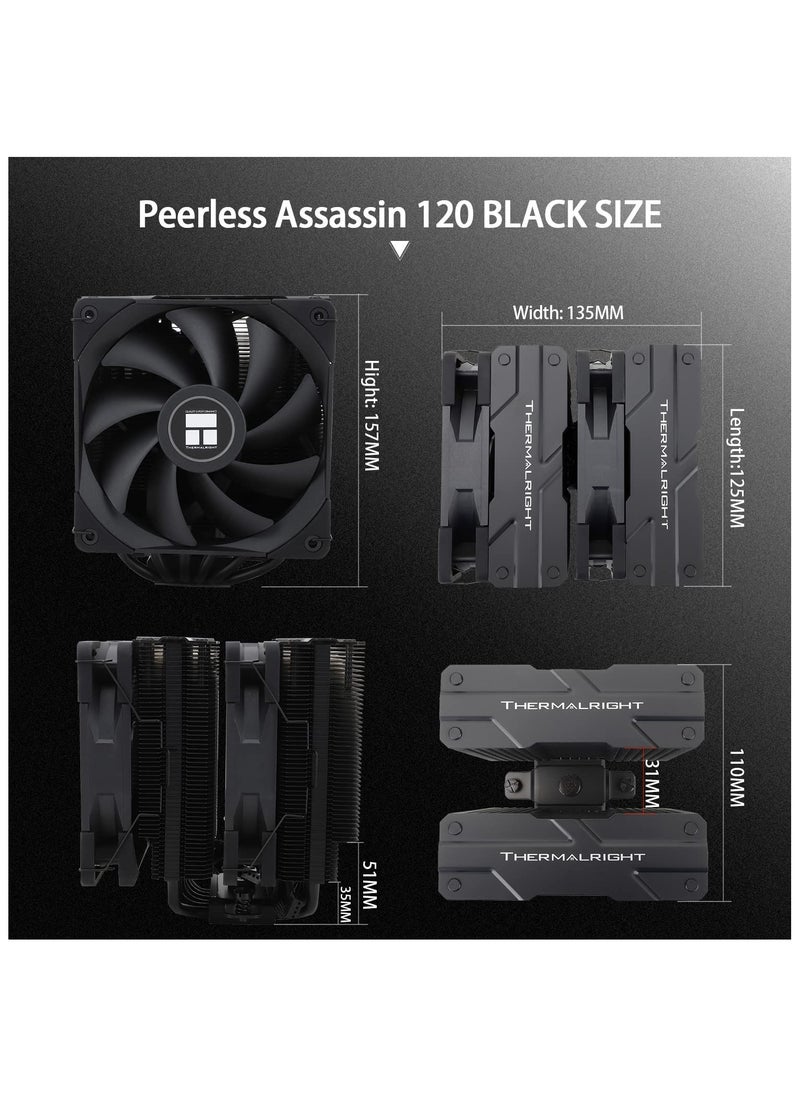

Dimensions: 125mm (L) x 135mm (W) x 157mm (H) (4.92 x 5.31 x 6.18 inches)
Material: The heat sink is made from high-quality aluminum, ensuring durability and superior thermal conductivity.
Installation: The cooler comes with metal fasteners designed for both Intel and AMD platforms, providing an easier and more secure installation process. Its double tower design delivers stronger cooling performance.

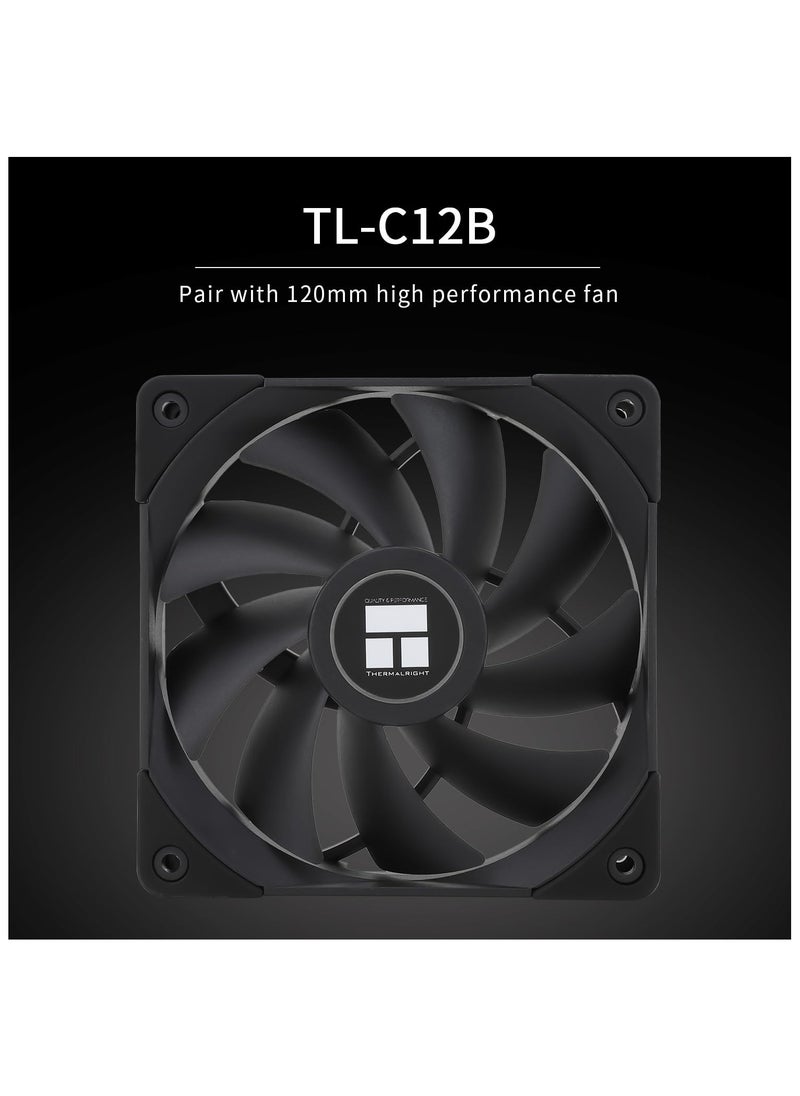

Dual PWM Fans
Model: TL-C12B
Fan Size: 120mm x 120mm x 25mm (4.72 x 4.72 x 0.98 inches)
Product Weight: 1.02 kg (2.25 lb)
Fan Speed: 1500 RPM ±10%
Power Port: 4-pin
Voltage: 12V
Air Flow: 66.17 CFM (Maximum)
Noise Level: ≤25.6 dB(A)

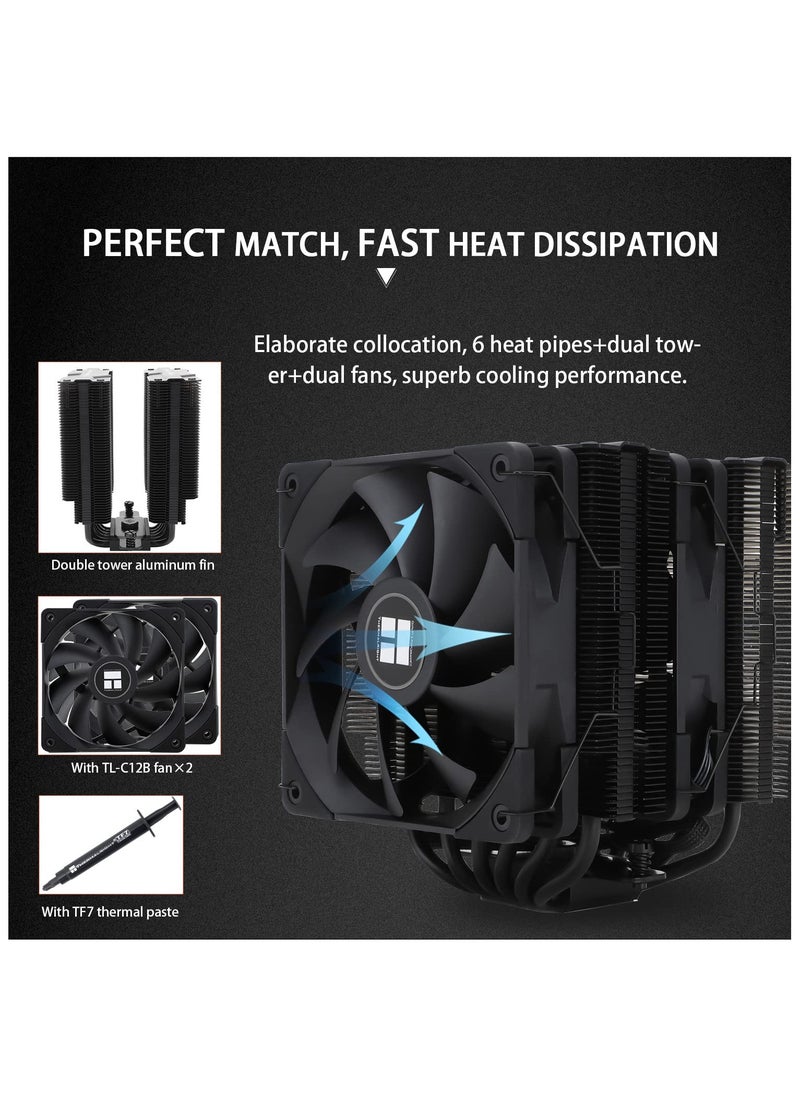

The dual fans work in tandem to offer a powerful cooling effect, maintaining an ideal temperature for your CPU while operating quietly. The high airflow ensures optimal cooling without excessive noise, making it perfect for both gaming and intensive computing tasks.

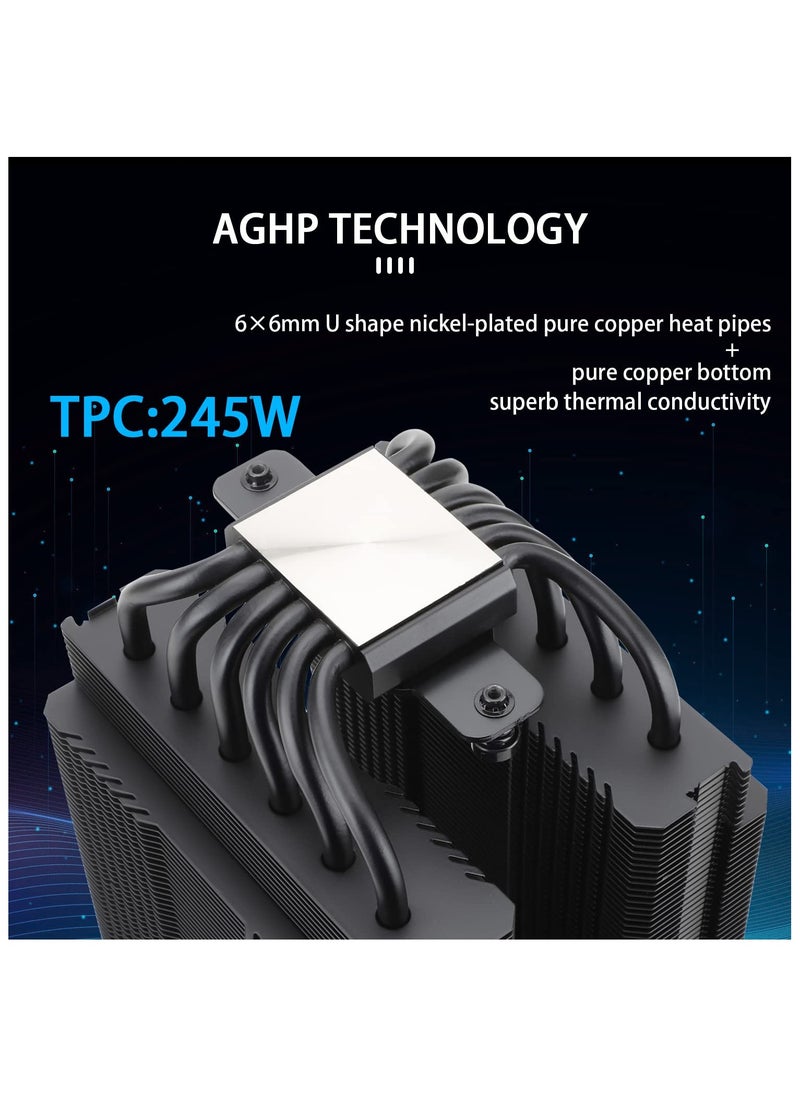

AGHP Technology
The Advanced Graphene Heat Pipe (AGHP) technique is applied to the 6x6mm heat pipes. This technology effectively resolves the inverse gravity effect often caused by the cooler’s vertical or horizontal orientation. The cooler’s thermal dissipation power (TDP) reaches up to 245W, allowing it to handle demanding workloads with ease. Featuring 6 sintered copper heat pipes, a pure copper base, and PWM fans, the cooler is designed to ensure superior heat management and ultra-silent airflow, delivering extreme CPU cooling performance.

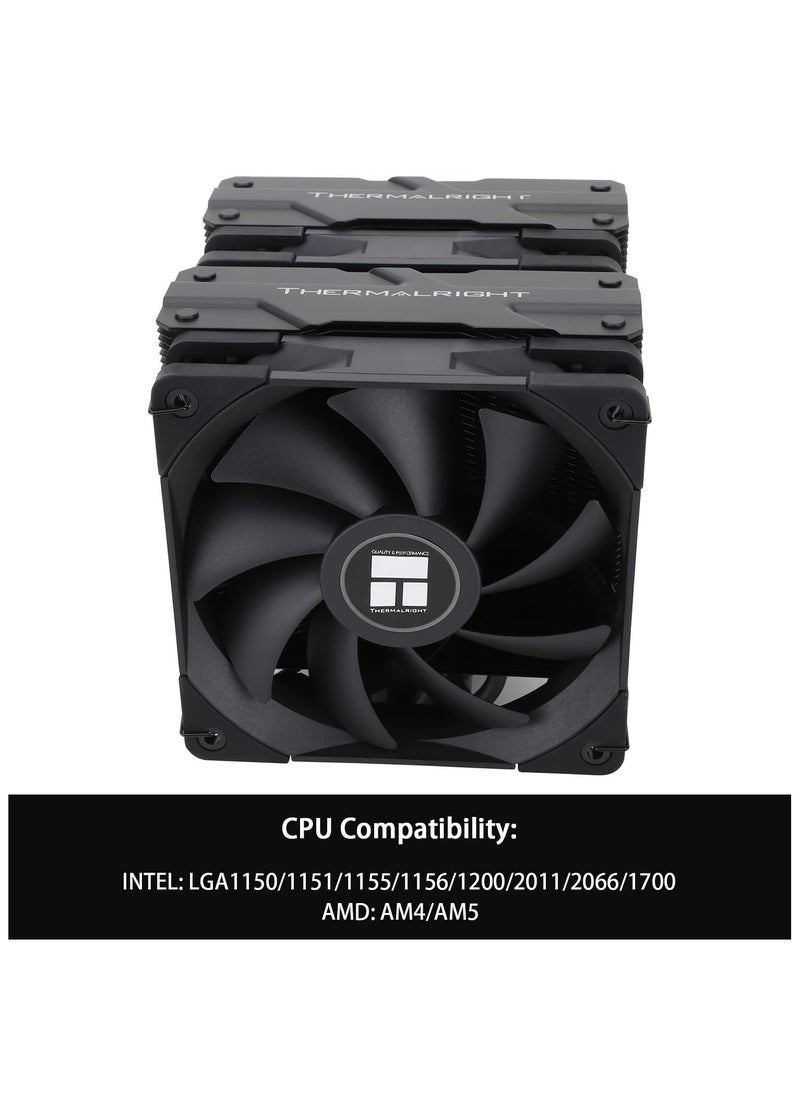

Compatibility
The Thermalright PA120 Black cooler is compatible with a wide range of Intel and AMD sockets. For Intel, it supports LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1700, LGA17XX, LGA2066, and LGA2011 sockets. For AMD, it supports AM4 and AM5 sockets. The cooler is supplied with various mounting plates or fastener components for seamless installation across different CPU socket platforms.
This cooler is designed for users seeking to push their CPUs to the limit while maintaining a quiet and efficient system. Whether you're building a high-performance gaming rig or a workstation, the Thermalright PA120 Black provides the cooling power required to keep your processor running smoothly.
- 【Better cooling】 With Full electroplating reflow welding process, the main body of the twin towers is sprayed with black paint at the nanoscale, the effective heat dissipation area is 9600cm. The offset asymmetric layout is allowed to installation on first graphics card slot, so that the cooler can achieve excellent heat dissipation performance during work.
- 【Product specification】Thermalright PA120 Black; CPU Cooler dimensions: 125(L)x135(W)x157(H)mm (4.92x5.31x6.18 inch); heat sink material: aluminum, CPU cooler is equipped with metal fasteners of Intel & AMD platform to achieve better installation, double tower cooling is stronger.
- 【2 PWM Fans】Model:TL-C12B; Standard size PWM fan:120x120x25mm (4.72x4.72x0.98 inches); Product weight: 1.02kg(2.25lb); fan speed (RPM): 1500rpm±10%; power port: 4pin; Voltage:12V; Air flow:66.17CFM(MAX); Noise Level≤25.6dB(A), The combination of dual fans makes the CPU cool better.
- 【AGHP technique】6×6mm heat pipes apply AGHP technique, Solve the Inverse gravity effect caused by vertical / horizontal orientation, cpu cooler TDP is 245W. 6 pure copper sintered heat pipes & PWM fan & Pure copper base. When CPU cooler works, match with ultra-silent airflow fans, aim to extreme CPU cooling performance.
- 【Compatibility】The CPU cooler Socket supports: Intel: LGA1150/1151/1155/1156/1200/1700/17XX/2066/2011, AMD: AM4 AM5; For different CPU socket platforms, corresponding mounting plate or fastener parts are provided.
