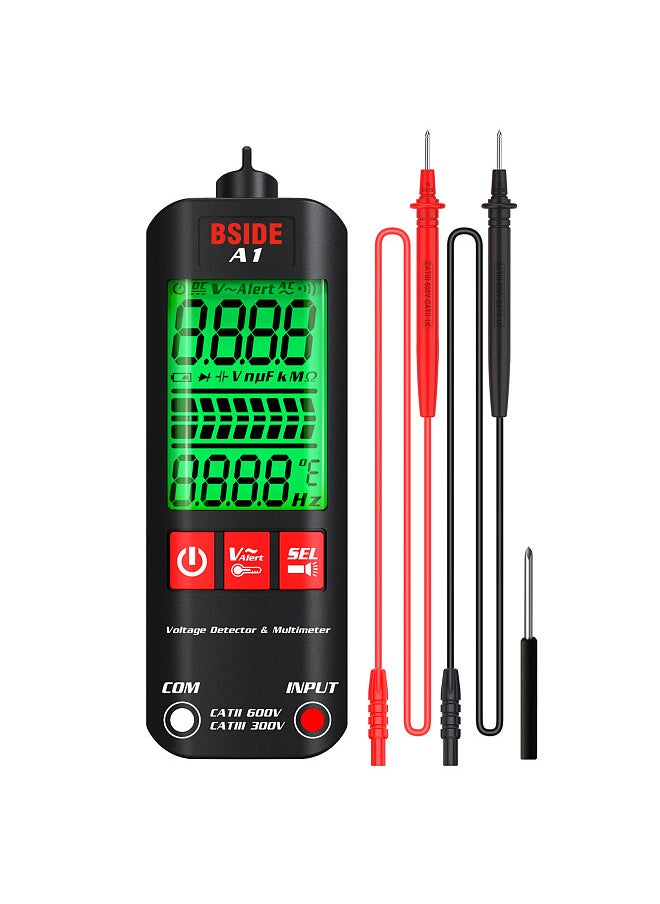

BSIDE A1 Mini Multimeter LCD Digital Tester Voltage Detector 2000 Counts DC/AC Voltage Frequency Resistance NCV Continuity Live Wire Neutral Wire Check True RMS Meter

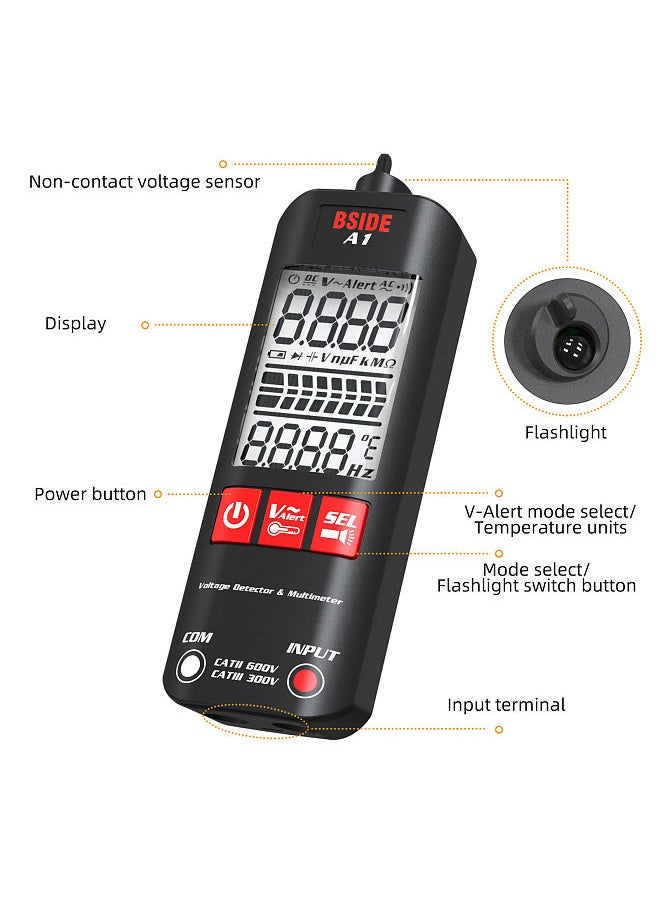

Brand: BSIDE Model: A1 Color: Black Shell Material: ABS Display: LCD Maximum Display Value: 2000 Digits Polarity Indication: Self-indicating, '-' means negative polarity Over-range Display: 'OL' or '-OL'  Sampling Time: The meter figures show about 0.4 seconds Automatic Power Off Time: 5 minutes Battery Low Voltage Indication: LCD display symbol Operational Temperature: 0~40℃ / 32~104℉ Storage Temperature: -10~60℃ / -4~140 ℉ Operating Altitude: ≤ 2000m Battery: 1.5V AAA x 2 ( Not Included ) Automatic Measuring Range: YES Full Measuring Range Overload conservation: YES Flashlight: YES V-Alert (NCV): YES Live / Neutral Wire Check: YES Breakpoint Locate: YES Automatic Identification: YES Item Size: 12.7*4.2*2.5cm / 5.00*1.65*0.98in (L*W*H) Packing Size: 16.5*7.3*3.8cm / 6.50*2.87*1.50in (L*W*H) Net Weight: 67g / 2.36oz ( without battery) Gross Weight: 159g / 5.54oz   Function Range Resolution Accuracy Input Impedance Maximum Input Voltage Red Backlight Alert DC Voltage 0V~500V (DC Mode)0.5V~500V (Auto Mode) 0.01V ±(0.8% + 3 counts) 1MQ 500V DC & AC (RMS) >90V AC Voltage 0V~500V (AC Mode)0.8V~500V (Auto Mode) 0.01V ±(1.2% + 5 counts) 1MQ 500V DC & AC (RMS) >90V Resistance 0Ω~10MΩ 1Ω ±(1.2% + 3 counts) / / / Frequency 40Hz~1000Hz 0.1Hz ±(2.0% + 3 counts) / / /

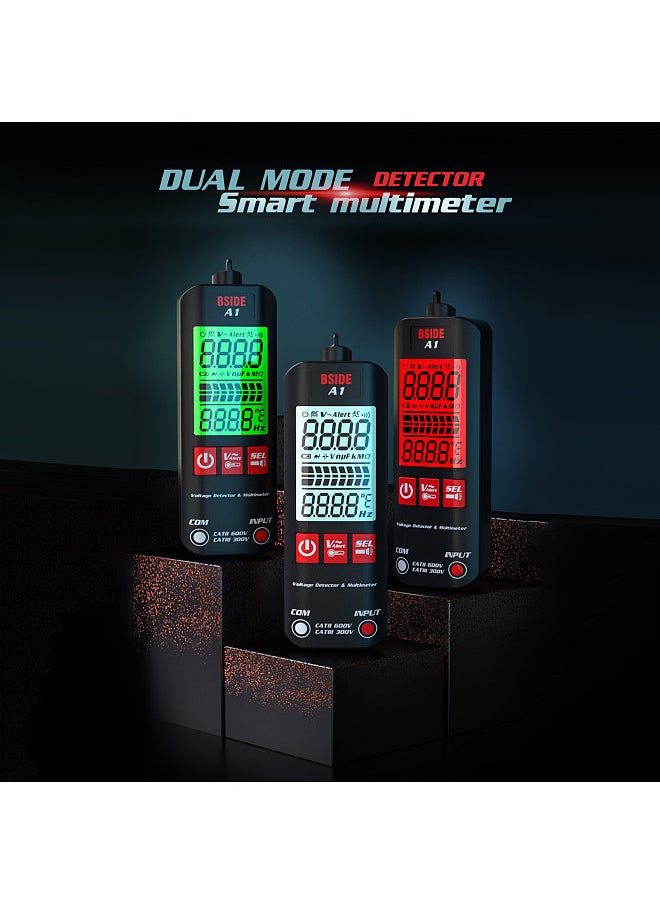

• 1. Dual Mode: Multimeter supports auto mode and manual mode. Auto mode can automatically measure AC / DC voltage, resistance and continuity.
• 2. Bright LED Flashlight: LED flashlight lets you test efficiently and comfortably anywhere, indoors and outdoors, day and night.

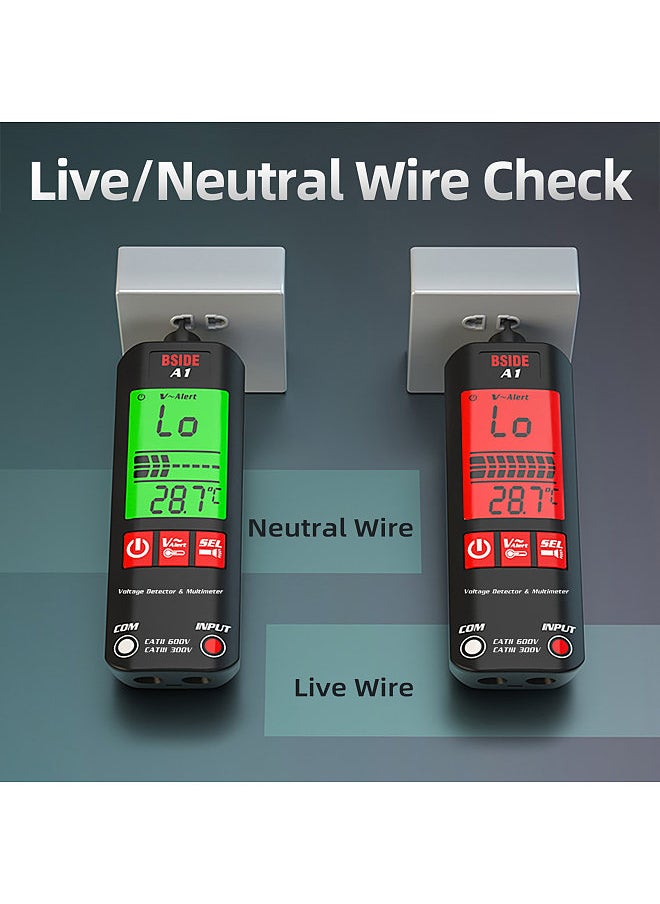

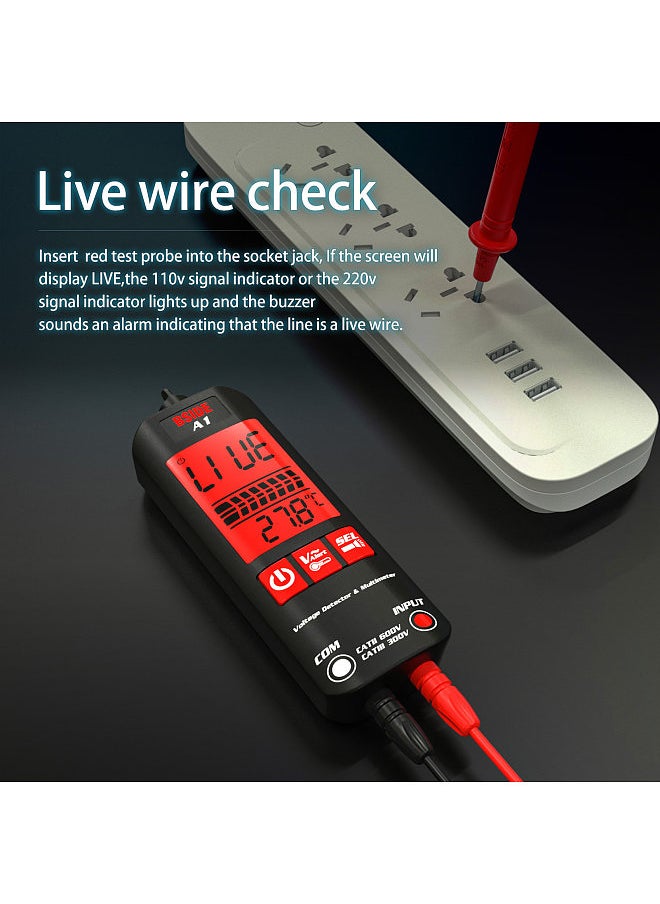

• 3. Live / Neutral Wire Check: Safe and easy to distinguish the live / neutral wire by comparing the strength of the detected voltage, the wire that detect the stronger voltage signal is live wire.

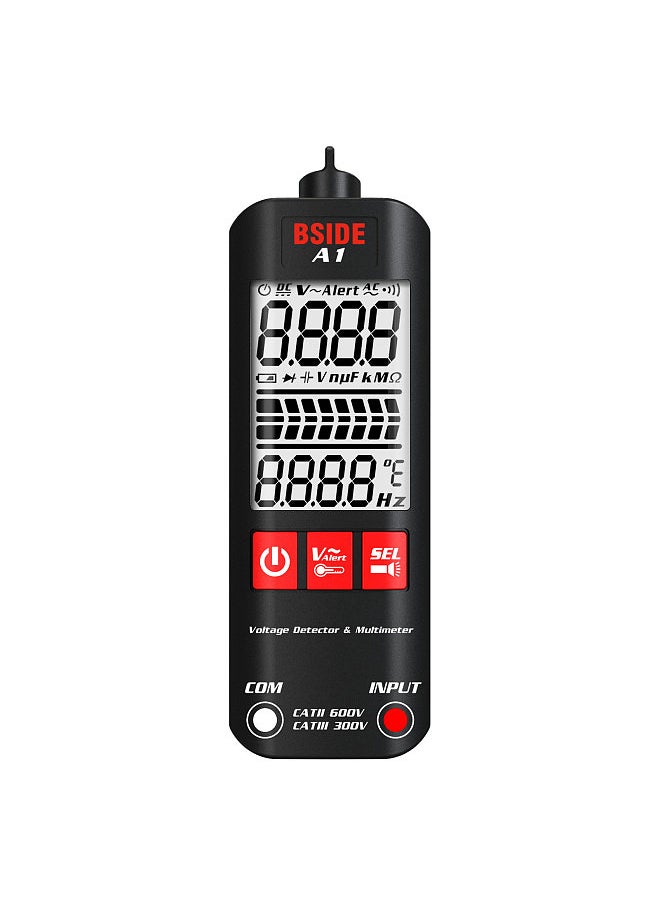

• 4. LCD Display: Greatly enhance the reading experience, the lighted up numbers and letters make it very easy to read, even in bright sunlight or poor light.
• 5. Easy to use: Insert the red test lead into the "INPUT" terminal, black test lead into the "COM" terminal. The AC and DC voltage, resistance and continuity can be measured directly after startup.
