KASTWAVE Automotive Circuit Tester, Power Circuit Probe Kit, Digital Multimeter Relay & Diode Resistance Tool, for Frequency Duty Cycle Voltage Test, Activating Component, w 20ft Cable

More Useful Features, Give You Try

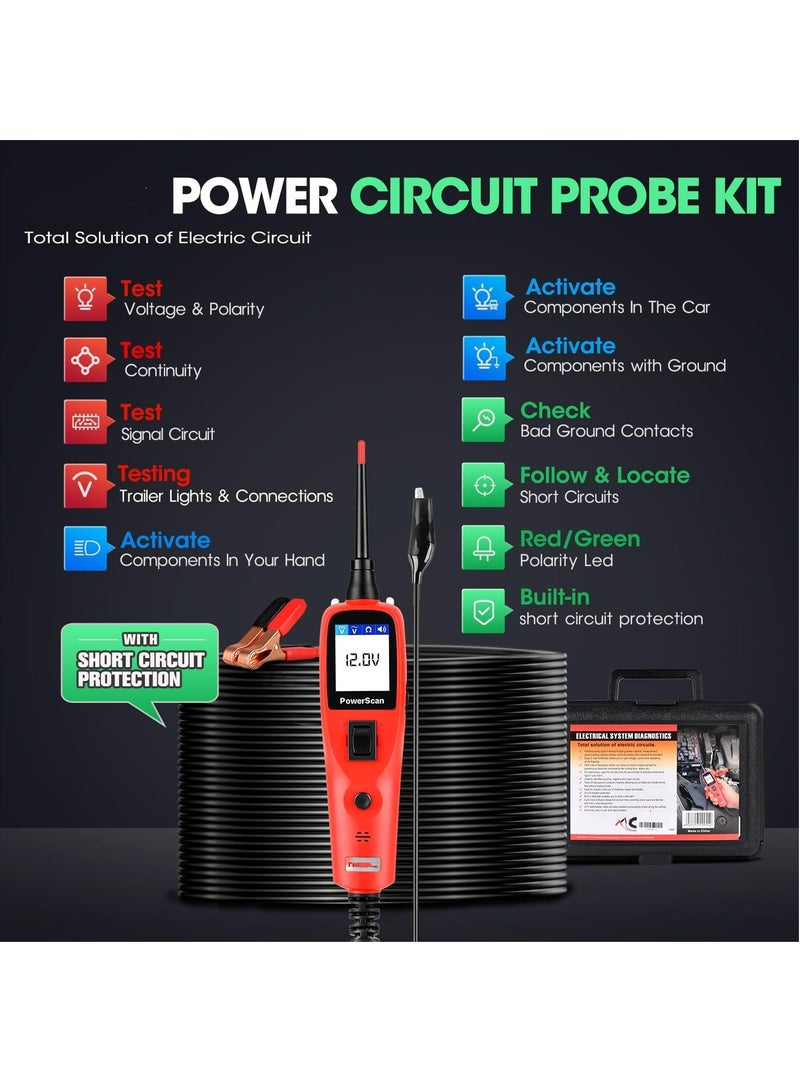

100 has rich functions, please check the following introduction:

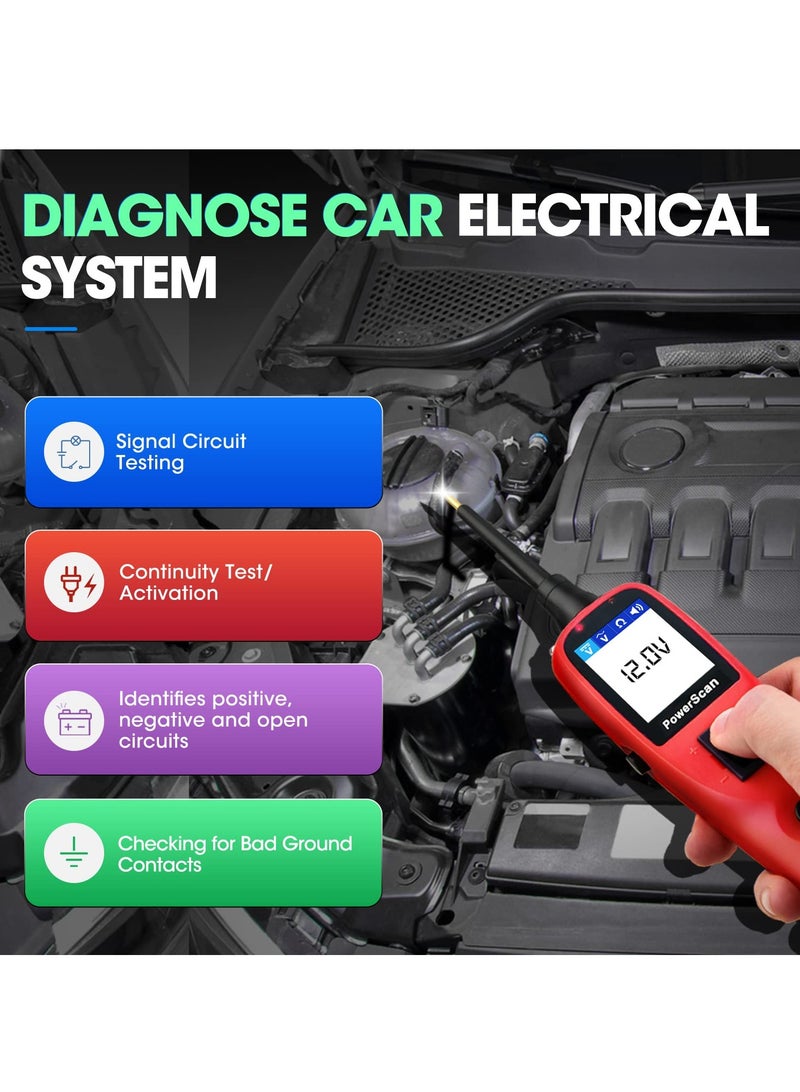

4 modes to diagnose the electrical system: DC voltage, AC voltage, resistance, diode.

Voltage & Polarity Test: According to the LED light and sound after the probe tip touches the circuit, it can accurately judge the positive, negative, and open circuits.

Continuity Test: While the tool is in Resistance mode, using the probe tip with chassis ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle’s electrical system.

Signal Circuit Test: When the vehicle has a fault code, in order to quickly determine whether the fault is caused by a certain sensor circuit, you can use this tool to quickly draw a conclusion.

Find Short Circuit: A short can manifest itself as a blown fuse or a tripped electrical protection device. Use the probe tip to activate and energize each fuse contact. The contacts that trip the circuit breaker are shorted.

Find Bad Ground: Probe for suspected ground wires or touch probe tips. If the breaker has tripped, the circuit is most likely grounded.

Activate Component in your hand/ in the vehicle/ W/Ground

Test Trailer Lights and Connections: Check function and orientation of connectors and trailer lights

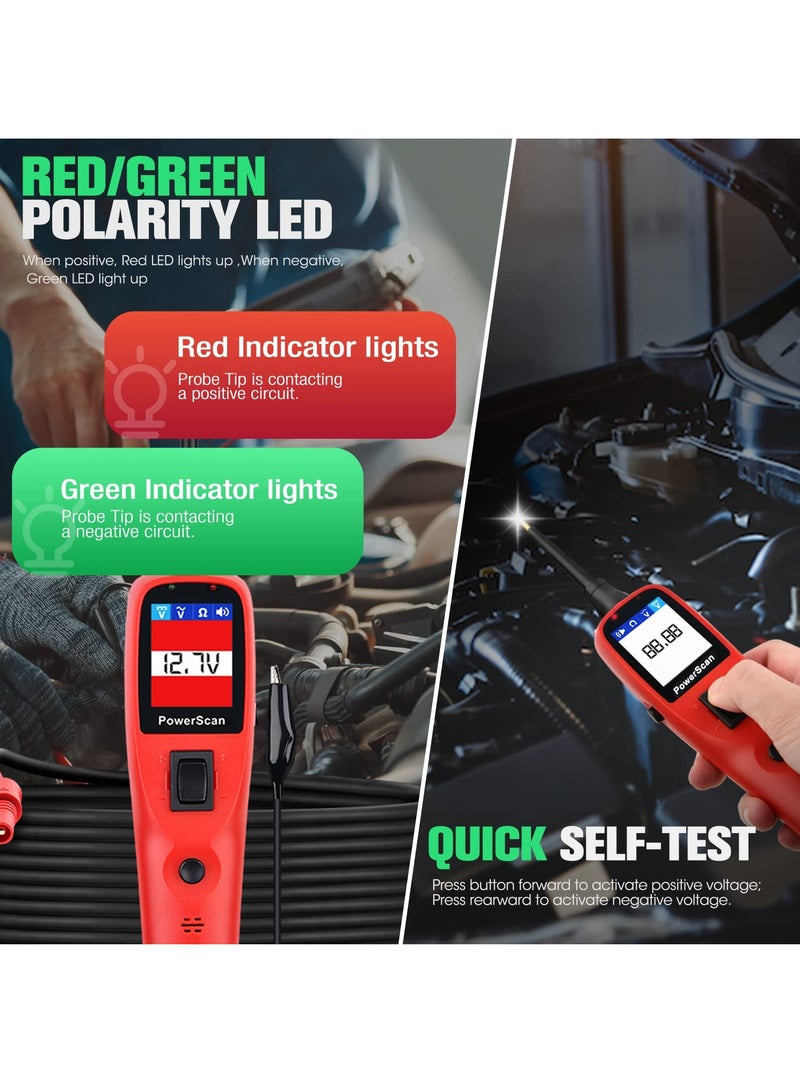

Red/Green Polarity Indicator: The red/green polarity LED illuminates when the probe tip voltage matches and is within ±0.8 volts of the battery voltage. It is additional information that may be of value to a technician.

• 【2024 ALL-IN-ONE POWER CIRCUIT TESTER KIT---ACCURATELY】Circuit Tester is most accurate power circuit probe tester yet, with 160x128 TFT display test all 6-30 volt vehicle electrical systems. It supports voltage&polarity test, continuity test, signal

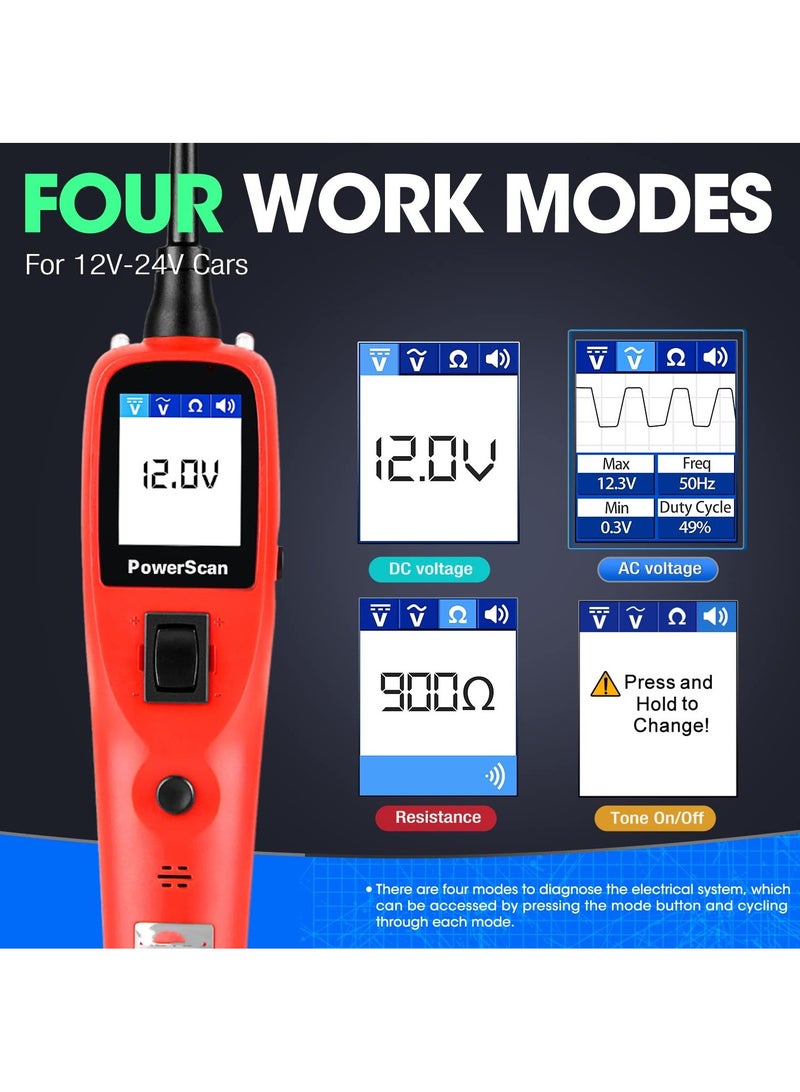

• 【FOUR WORKING MODE---INTUITIVE&EASY】Four working modes make circuit detection more simple:DC Voltage, AC Voltage, Resistance, Tone On/ Off. DC Voltage mode can read DC voltage with 0.1V resolution; AC Voltage can read Max & Min voltage, frequency and
• 【COMPONENT ACTIVATION】The component activation feature is specially designed to troubleshoot on/off-board electrical equipment. By activating the signal generated by the component, you can accurately judged whether the component is intact, such as bl
• 【INSTANT IDENTIFY POLARITY】Automotive Circuit Tester instantly checks component continuity and quick identifies positive, negative and open circuits. When the positive terminal is connected, red LED lights up with beep sounds. When the negative termi
• 【CONTINUITY TEST, SIGNAL CIRCUIT TEST】Electrical System Tester can test the state of sensors, quickly and accurately judge the connectivity of circuit via transmitted signal, performing continuity test. Two ways to test continuity: ✅1: In resistance
