KASTWAVE Infrared Beam Sensor Photocell Sensor for Gate Opener Universal Outdoor Infrared Beam Sensor Sliding Gate Opener Accessory 24V 1 Pair (Transmitter and Receiver)

Technical ParameterTechnical Parameter: Power supply: DC 10.5V-24V/0.5A Maxium current: TX:15maMAX RX:30maMAX Optical source: Infrared Pulse Infrared Wave length: 940nm Infrared transmission frequency: 1.92KHz Response speed: 50ms Alarm output time: ≥1 Second Detection mode: Block off the infrared beam Infrared sensor receiver: Infrared angle: <±10° Infrared distance: ≤20m Relay contact capacity: AC、DC30V、0.5Amax Working environment: Temperature: -25℃~+55℃ Humidity:RH95% Product dimension: 76x48.2x30(mm) Package includes: 1*Photocell Sensor(one transmitter and one receiver) 1*Mounting Accessories 1* Instruction manual Note: 1. The optimal installation height should be lower than people. 2. The product should be vertical when install and make sure the transmitter and receiver be at the same level. 3. Since the transmitting power of this product is large,the signal will be very strong if the transimitter is too close with the reciever. so please make the distance at least 1 meter btween the transmitter and receiver,then try again. 4. When the installation distance is very close, remove the spectral lens to enhance the sensitivity.

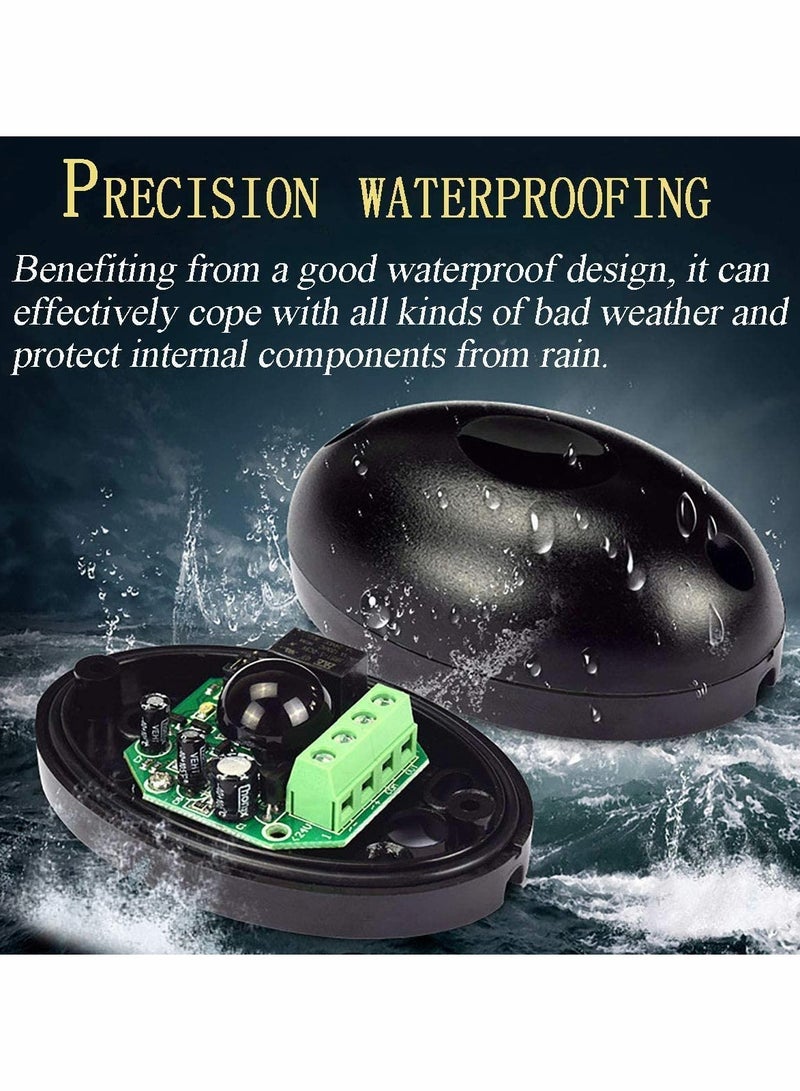

• 【ADVANCED TECHNOLOGY】 Design with waterproof cover,all-weather integrated structure design of fully sealed waterproof (fog), dust proof (insect),etc.Enables it to work normally in harsh environment.
• 【UNIQUE DESIGH】 High-power transmitter, 90% sensitivity margin, high-power infrared transmitter-receiver pair tube, low-power processing technology lightning protection circuit design.

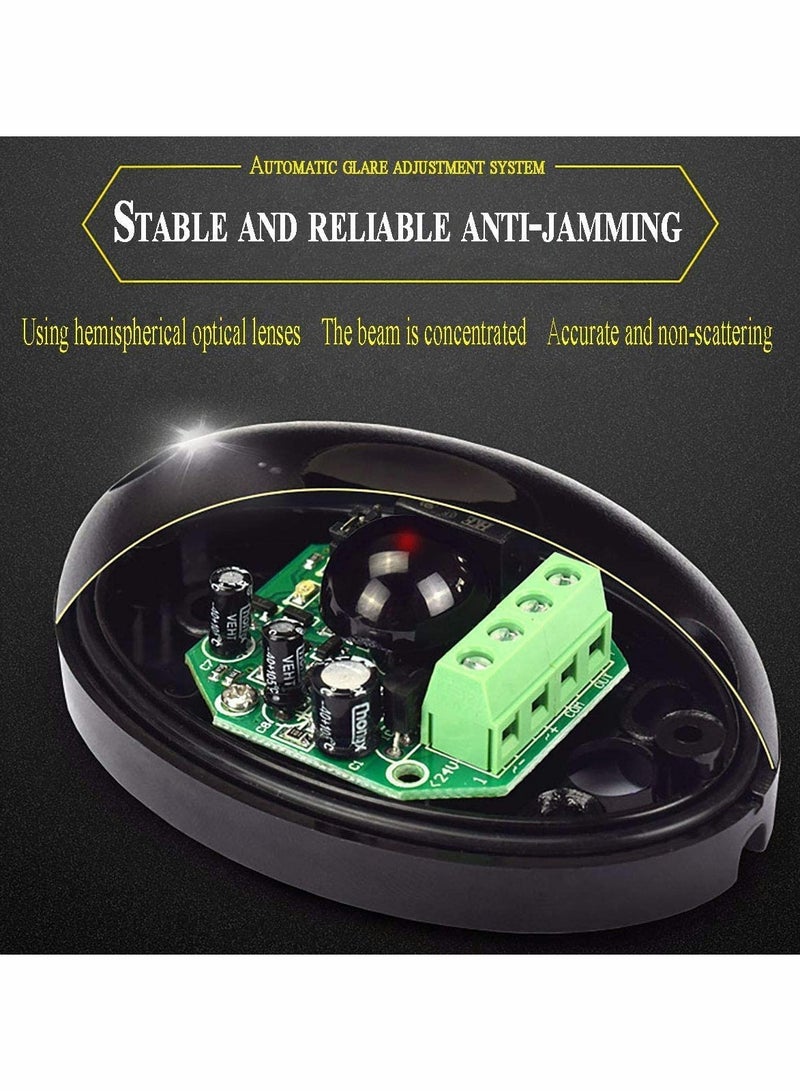

• 【ACTIVE REGULATION】 Resistant to strong light up to 50,000 LUX, built-in automatic adjustment of strong light filter system, to avoid the impact of strong light or car lights.

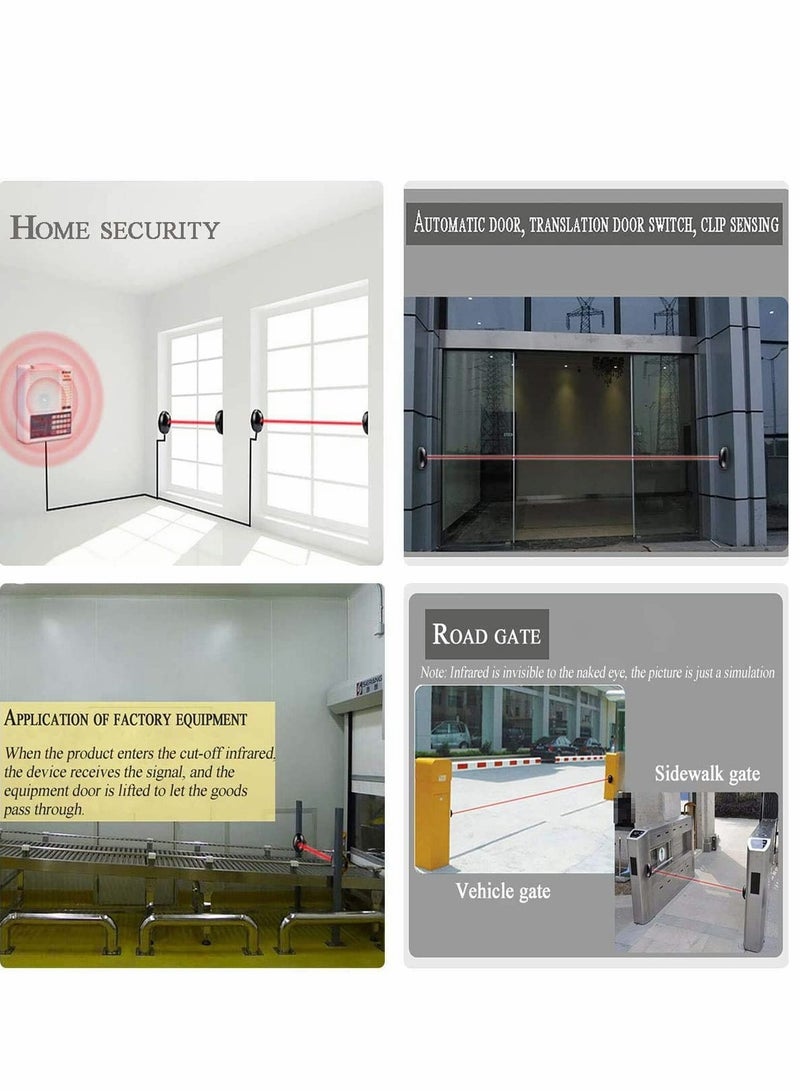

• 【WIDE APPLICABILITY】 Active infrared detector can replace the passive infrared intrusion detector installed in small supermarkets, convenience stores, but also applicable to schools, office buildings, dormitories, home and other security systems.
• 【INSTALLATION】 The best installation height should be more than 2Ocm, installation distance should be not less than 1 m; infrared protection device should be vertically placed, and in the same horizontal line.
