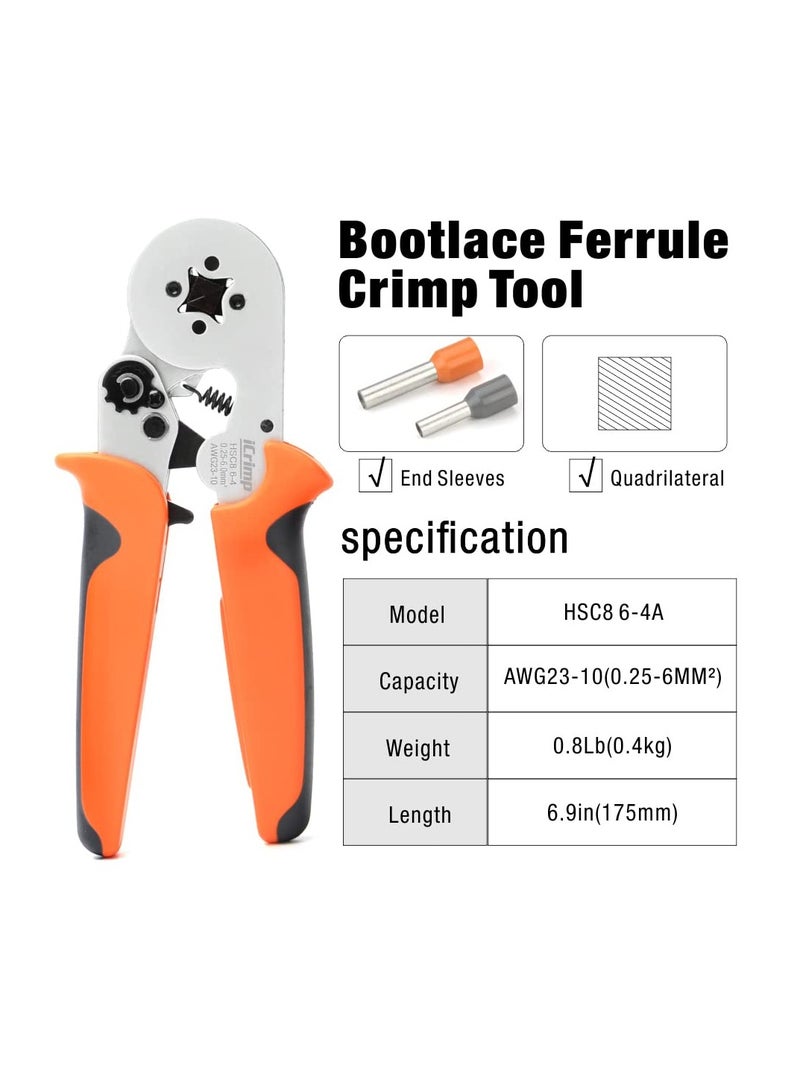

HSC8 6-4A hand crimp tool for wire ferrules provides a serrated, square crimp profile created by 4 synchronously driven crimp jaws in an ergonomic design lever action for optimal transition of force. HSC8 6-4 ferrule crimp tool is capable of making no fray crimps, with all of your wire strands encased and crimped together within a ferrule, a better connection is made for perfect uninterrupted current flow.
Use for solder-free electrical connections.
Crimping Range: AWG 28 to AWG 10(0.25mm²-6.00mm²).
Crimping Range(Twin): 2x22-2x14 AWG (2x0.50mm²-2x2.50mm²).
Insulated & twin insulated ferrules, non-insulated ferrules.

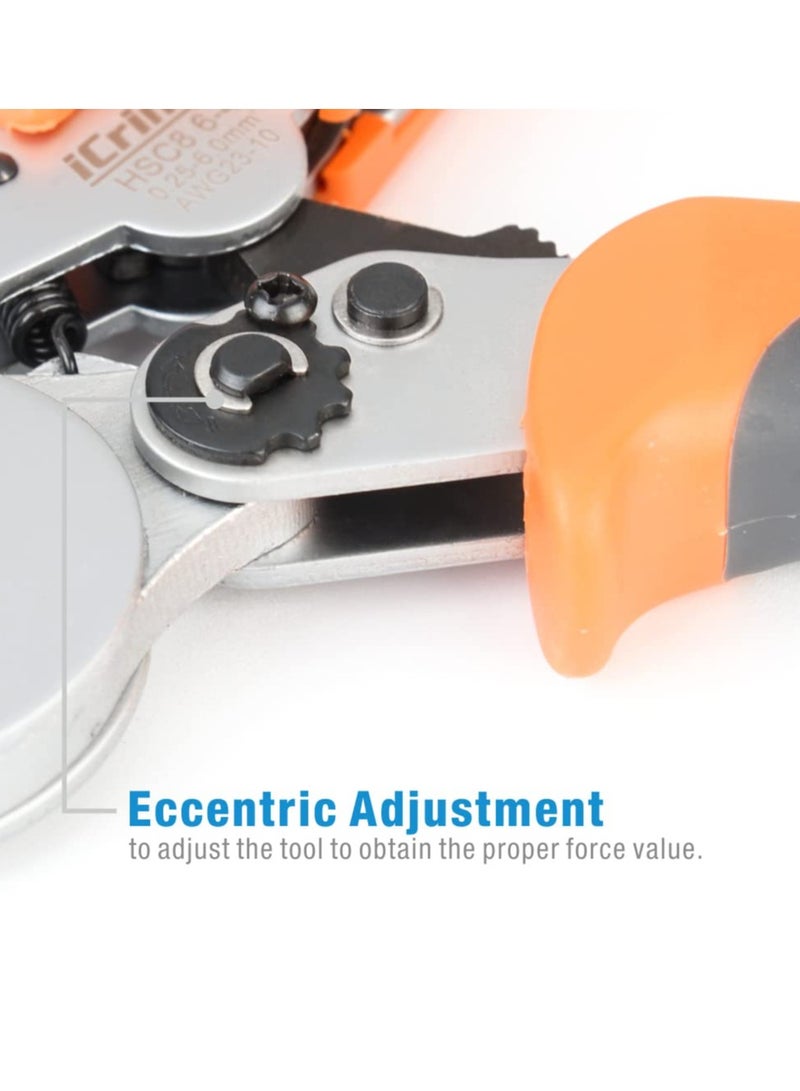

Self adjusting square crimping profile.

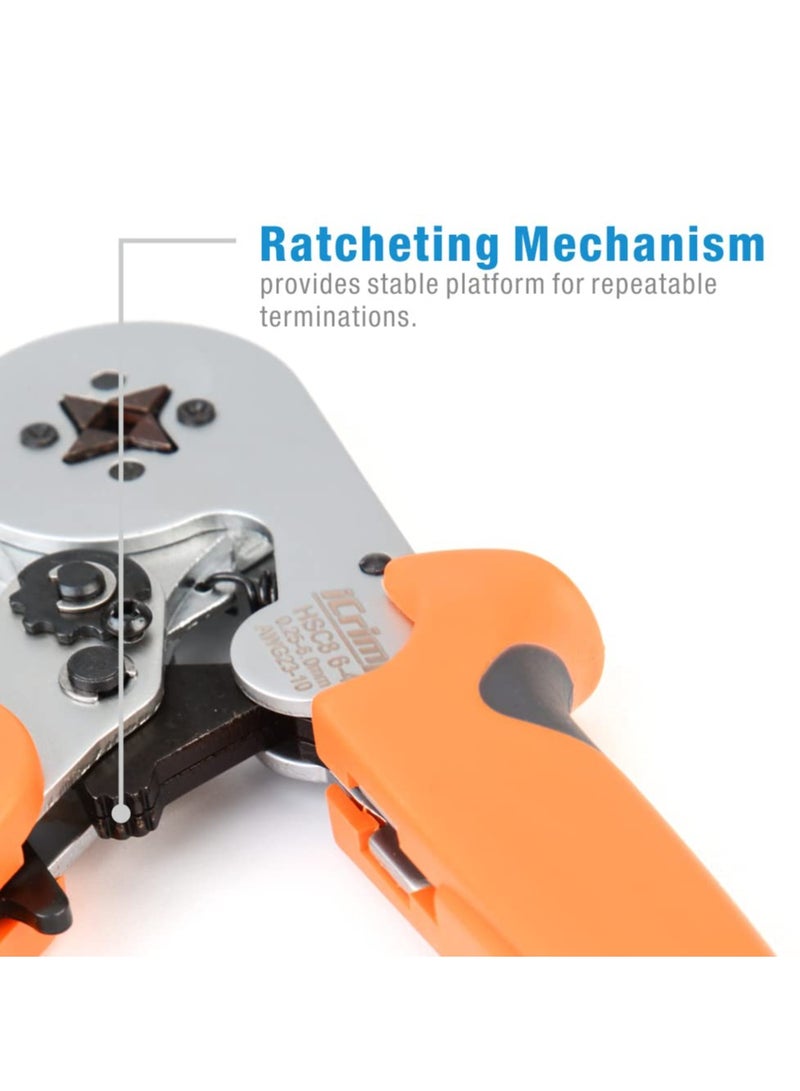

Ratchet crimping mechanism.
- 🔧【Wire Ferrule Crimper】: The HSC8 6-4A is a self-adjusting crimping plier designed for end sleeves (ferrules) with quadrilateral access, ensuring precise and reliable crimps every time.
- 🔄【Crimping Range】: This tool is versatile, accommodating wire sizes from AWG 23 to AWG 10 (0.25mm²-6.00mm²). For twin ferrules, it supports a range from 2x22 to 2x14 AWG (2x0.50mm²-2x2.50mm²).
- 🔲【Four-Lateral Crimping】: The quadrilateral crimp design encapsulates the crimp, eliminating stray wire breakage and ensuring ease of wire insertion. This prevents loose strands, ensuring that wire strands do not fray or spread during the crimping
- 🤲【User Friendly】: Compatible with both left and right-handed users, the ergonomically shaped non-slip handles provide user comfort, reducing hand fatigue during extended use.

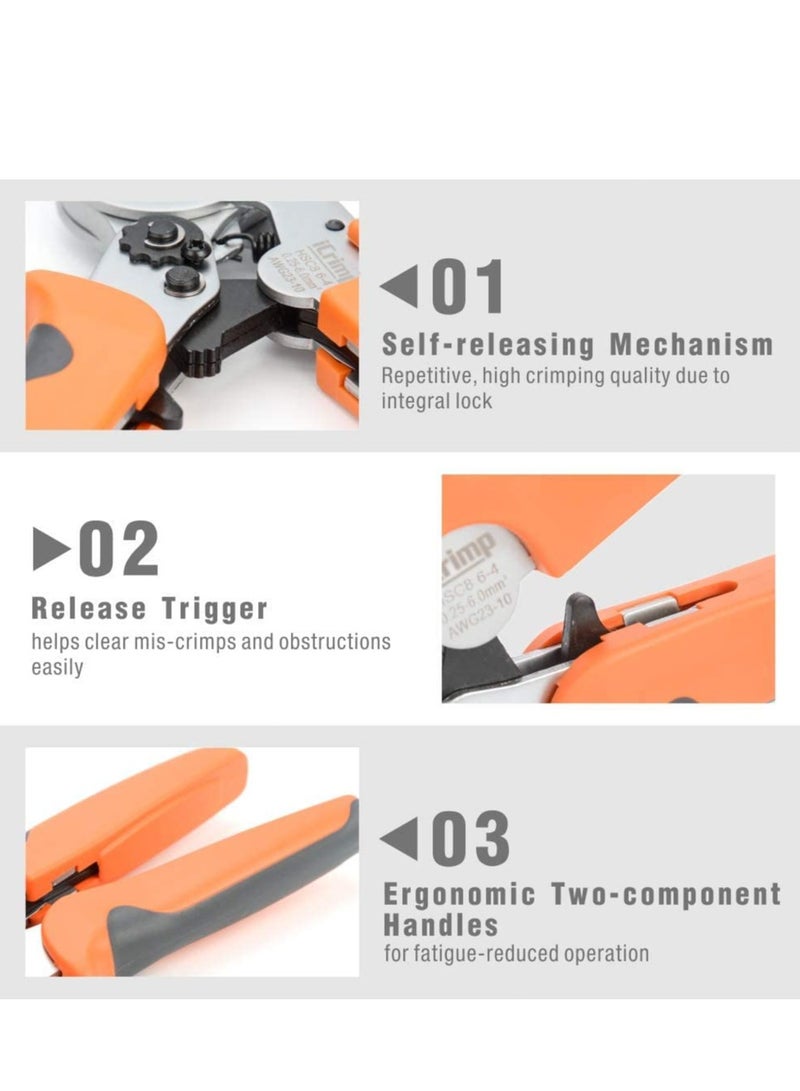

- 🔒【Full Cycle Ratchet】: The energy-saving ratcheting mechanism requires less handle force, ensuring consistent crimping quality. The safety crimp release feature helps eliminate rejected terminations due to incorrect positioning, providing an added
