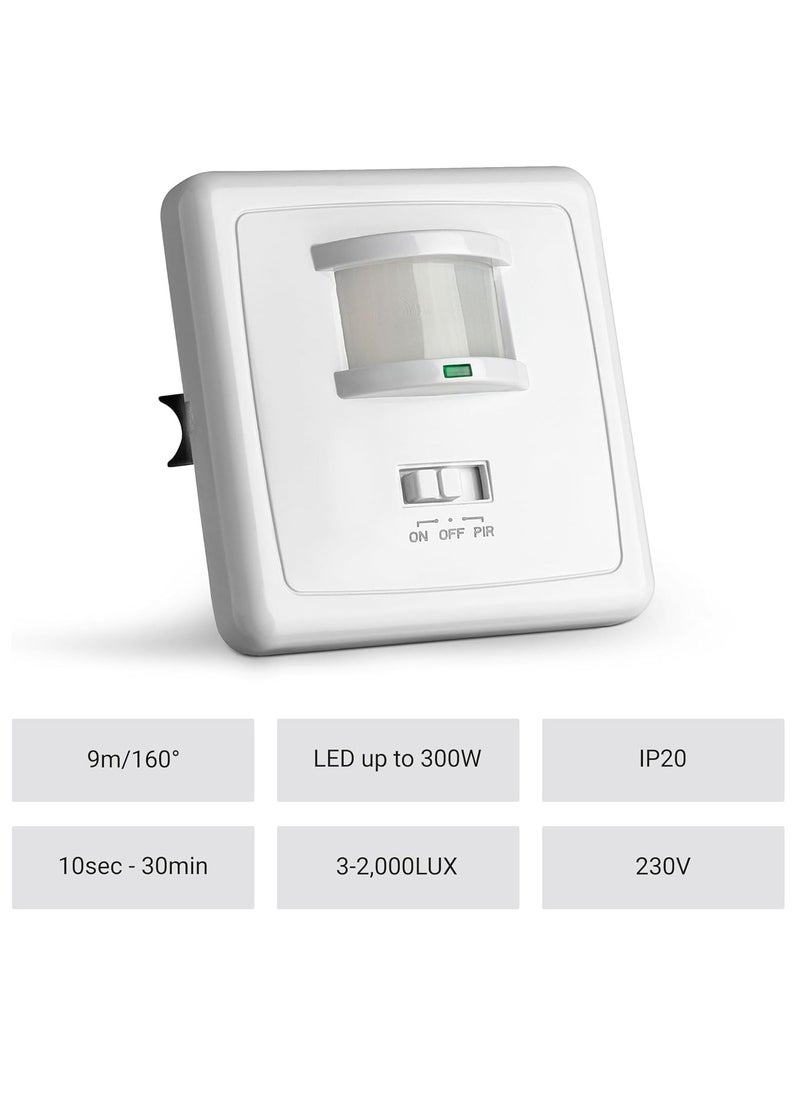

IR flush-mounted motion detector with on/off switch
With this motion detector, you have variable switching options: Manual switching on and off or switching on when moving and switching off according to the time schedule. The infrared sensor detects movements of persons, large animals and vehicles in a detection range of up to 9m at a detection angle of 160° and switches on the connected lighting. After a preset time of approx. 10 seconds to 30 minutes, the motion detector switches off again. With the help of a controller, the switch-on sensitivity of this device can be regulated depending on the ambient brightness (in the range between 3 and 2,000 LUX).
Product features
Operating voltage: 220-240V AC 50/60Hz
Max. Power consumption: Max. 1200W with usual lamps, max. 300W with energy saving lamps
Power consumption on standby: 0.5W
Switch: On, off or detector
Detection speed: 0.6-1.5m/s
Detection range: Max. 9m (<24°C)/160°
Ambient brightness: <3-2,000LUX
Protection grade: IP20
Switch-off delay: Min. 10s +/-3s - Max. 30min +/-2min
Ambient temperature: -20° to +40°C
Humidity: <93%
Suitable for flush-mounted boxes: 60mm
Suitable for cavity boxes: 68mm
Installation dimensions: 52x46x34mm
Product dimensions: 79x79x45mm
Housing material: Plastic
- The motion sensor has a maximum power consumption of 1200 W for incandescent lamps and 300 W for LED lamps or other energy-saving lamps.
- The detection range of this infrared sensor is 9 m and 160°. The duty cycle is 10 seconds to 30 minutes or permanently switched on or off.

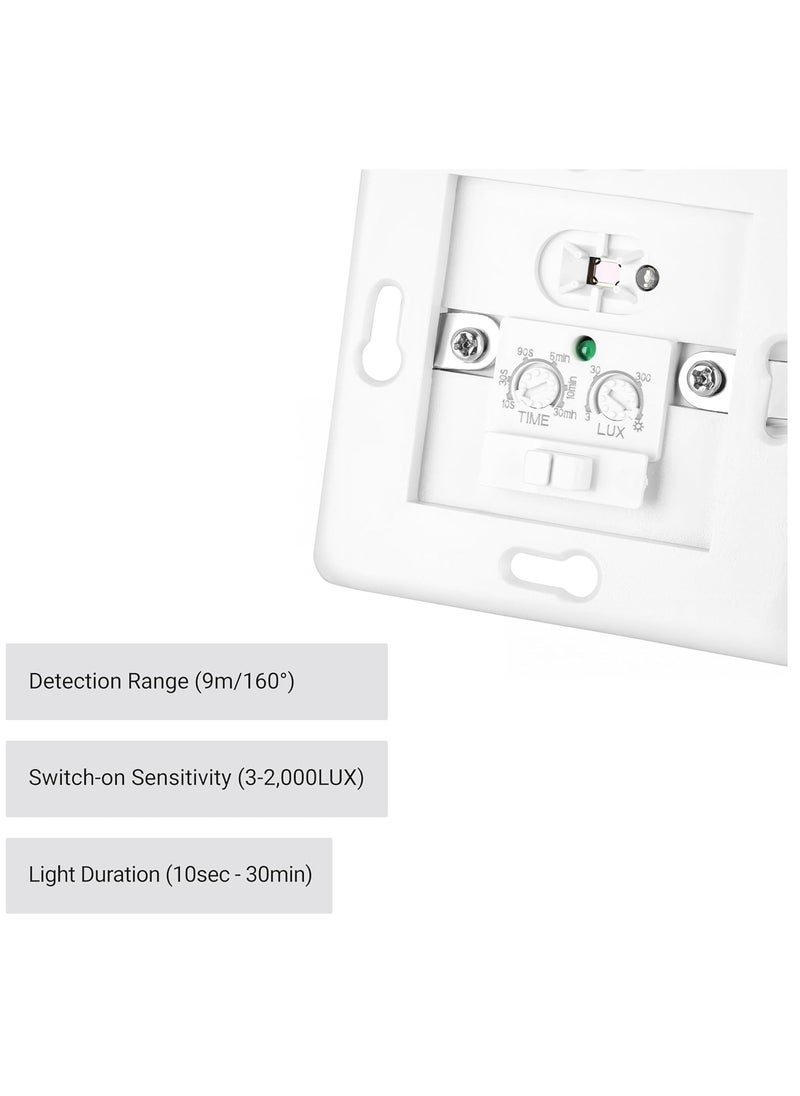

- The installation motion sensor can also be adjusted according to the ambient brightness (in the range between 3 and 2,000 LUX).
- To ensure optimal sensitivity of the sensor, mount the device on the wall or ceiling so that movements are made across the device.
